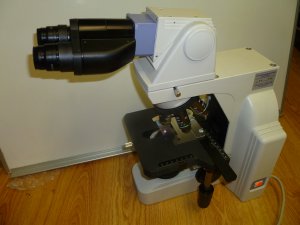

NIKON Eclipse E400 Microscope with precision manual XY stage. 5-position nosepiece. 6V 30W halogen light. Ergonomic binocular with incline angle 0 to 90 degree adjustment, changed 2.5" depth in operator eyes direction, and distance between the oculars. Microscope goes with 4 Nikon CFI 60 plan oblectives: 4X/0.1; 10X/025; 20X/0.4; 40X/0.65 inf/0.17. You can use Nikon and Leica 25 mm, Olympus and Leca/Leitz 20 mm infinity objectives with thread adapters ( I have 2 adapters). (See the different other objectives on the main picture). Call me if you need different objectives or configuration. I have a number of different hi-res plan objectives. Nikon Ergonomic Binocular with CFI 10X/22 eyepieces. Microscope is fully tested on a real blood specimen. Abbe 1.25 condenser clean and smooth. Can be replaced with flip-top condenser for extra $150 or with universal condenser 1X to 100X for extra $550. Clean optics. NO RETURNS, I can't be sure that I will get item back in the same conditions. Shipping includes $1000 cost insurance! Serious bidders only, please. I do not consider unreasonable offers! Call me if you have any questions. 347-587-3946. Yury.
Available since the mid-1990s, the mid-tier microscope incorporates completely new specifications adopted for the CFI60 series objectives, including a 60-millimeter parfocal distance, a 25-millimeter thread size, and a standard 22-millimeter field of view. An ergonomic design allows for longer periods of comfortable observation.
Main components of the CFI60 infinity optical system include the objective, a tube lens to converge the light beam, and an eyepiece lens to enlarge the intermediate image, all with the absence of significant optical aberration. A parallel optical path exists between the objective and the tube lens, which allows auxiliary modules, such as an epi-fluorescence illuminator or polarizing intermediate tube to be placed in the optical path in order to create a flexible modern microscope system without additional relay optics.
Infinity or parallel light beams offer an intrinsic design advantage in that they are relatively insensitive to placement of additional optical components in the telescopic space between the objective and the tube lens. So long as they are plane parallel, infinity beams are not affected by the thickness of components, such as filters, analyzers, compensators, DIC prisms, and reflectors. The location of the image point remains constant, both axially and laterally, as does the alignment between the objective and the tube lens.
The E400 incorporates a number of ergonomic features. The angle of the eyepiece tube is lower than on conventional models, only 25 degrees up from horizontal, assuring better posture for the operator. An optional riser allows taller operators to increase the height of the eyepiece by as much as 100 millimeters. The stage height is 200 millimeters lower than on conventional models, facilitating smooth nosepiece rotation and specimen handling for faster, more efficient, strain-free operation. The stage handle and the focus control knob are equidistant from the operator and positioned so the operator's hands can rest on the desk. The main switches and controls are located in the front for easy access. The design of the fine focus knob and the stage handle enable the user to make adjustments with one hand leaving the second hand free for other tasks.
